Written by Klaus Fuchs on . Posted in Sumbmersible Pump.

KRS

  • TEASER FOR PRODUCT DETAILS: KRS
  • UPLOAD IMAGE FOR PRODUCT:
  • product-detail: KRS
  • :

    Dewatering Pumps

    Discharge Bore(mm) 80 – 250
    Motor Output(kW) 2.2 – 22

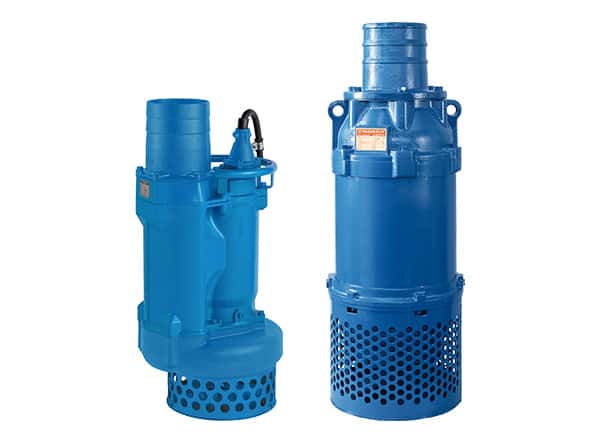

    The KRS-series is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.*
    * Model KRS1022 is a top discharge, flow-thru design. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability.

    Model Selection

    Discharge
    Bore
    (mm)    		 Model Motor
    Output
    (kW)    		 Phase Starting
    Method    		 Solids
    Passage
    (mm)
    80 KRS32.2 2.2 Three D.O.L. 12
    80 KRS33.7 3.7 Three D.O.L. 12
    100 KRS43.7 3.7 Three D.O.L. 12
    100 KRS45.5 5.5 Three D.O.L. 12
    150 KRS67.5 7.5 Three D.O.L. 20
    150 KRS611 11 Three D.O.L. 20
    200 KRS811 11 Three D.O.L. 30
    200 KRS815 15 Three D.O.L. 25
    200 KRS819 18.5 Three D.O.L. 25
    200 KRS822 22 Three D.O.L. 25
    200 KRS822L 22 Three D.O.L. 25
    250 KRS1022 22 Three D.O.L. 25

Submersible Pump

  • Hits: 333

Written by Klaus Fuchs on . Posted in Sumbmersible Pump.

KTZE

  • TEASER FOR PRODUCT DETAILS: Dewatering Pumps (Automatic)
  • UPLOAD IMAGE FOR PRODUCT:
  • product-detail: Dewatering Pumps (Automatic)
  • :

    Dewatering Pumps (Automatic)

    Discharge Bore(mm) 50 – 100
    Motor Output(kW) 1.5 – 3.7

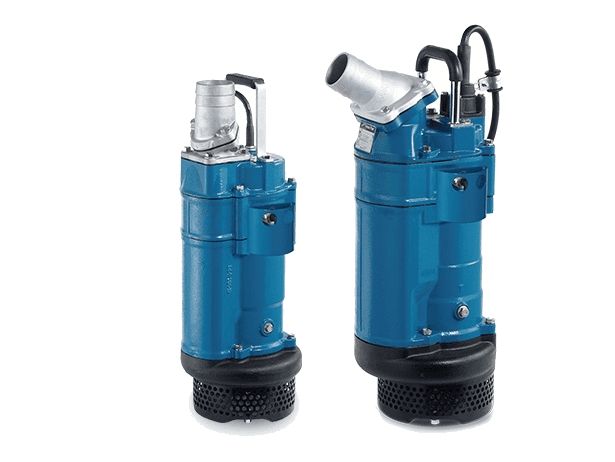

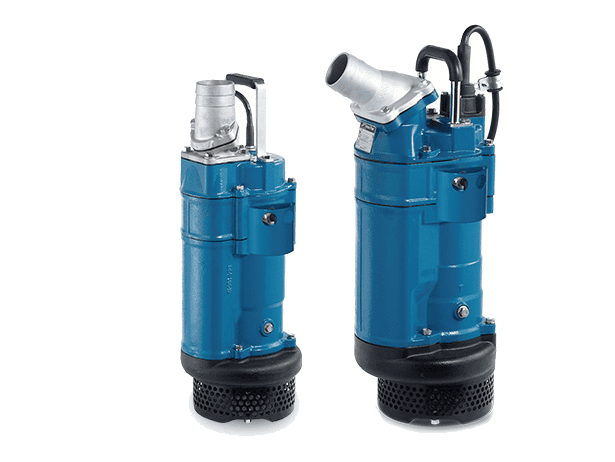

    The KTZE-series is a submersible three-phase automatic cast iron high head heavy-duty drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.

    REGISTRATION OF DESIGN

    Tsurumi KTZ-series has been registered of the design around the world (including the EU, the U.S. and China).
    The right on the design shall be granted under the law of each country.

    Model Selection

    Discharge
    Bore
    (mm)    		 Model Motor
    Output
    (kW)    		 Phase Starting
    Method    		 Solids
    Passage
    (mm)
    50 KTZE21.5 1.5 Three D.O.L. 8.5
    50 KTZE22.2 2.2 Three D.O.L. 8.5
    50 KTZE23.7 3.7 Three D.O.L. 8.5
    80 KTZE31.5 1.5 Three D.O.L. 8.5
    80 KTZE32.2 2.2 Three D.O.L. 8.5
    80 KTZE33.7 3.7 Three D.O.L. 8.5
    100 KTEZ43.7 3.7 Three D.O.L. 8.5

Submersible Pump

  • Hits: 300

Written by Klaus Fuchs on . Posted in Sumbmersible Pump.

KTVE

  • TEASER FOR PRODUCT DETAILS: KTVE
  • UPLOAD IMAGE FOR PRODUCT:
  • product-detail: KTVE
  • :

    Dewatering Pumps (Automatic)

    Discharge Bore(mm) 50 ･ 80 (100)
    Motor Output(kW) 0.75 – 5.5

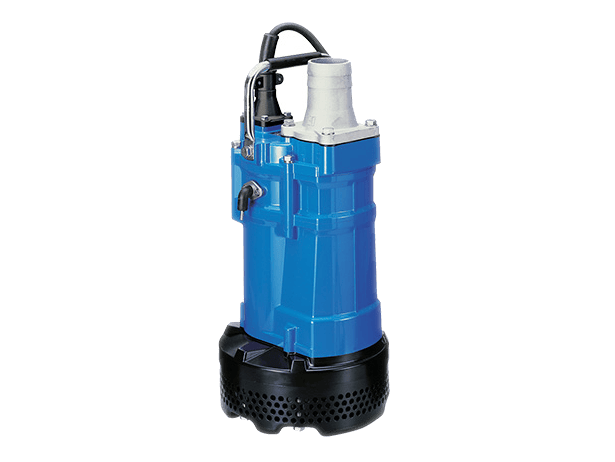

    The KTVE-series is a submersible three-phase automatic portable drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a three-phase unit, it is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.

    Model Selection

    Discharge
    Bore
    (mm)    		 Model Motor
    Output
    (kW)    		 Phase Starting
    Method    		 Solids
    Passage
    (mm)
    50 KTVE2.75 0.75 Three D.O.L. 8.5
    50(80)* KTVE21.5 1.5 Three D.O.L. 8.5
    50(80)* KTVE22.2 2.2 Three D.O.L. 8.5
    80(100)* KTVE33.7 3.7 Three D.O.L. 8.5
    80(100)* KTVE35.5 5.5 Three D.O.L. 8.5

    * Discharge bore in parentheses available on special request.

Submersible Pump

  • Hits: 280
