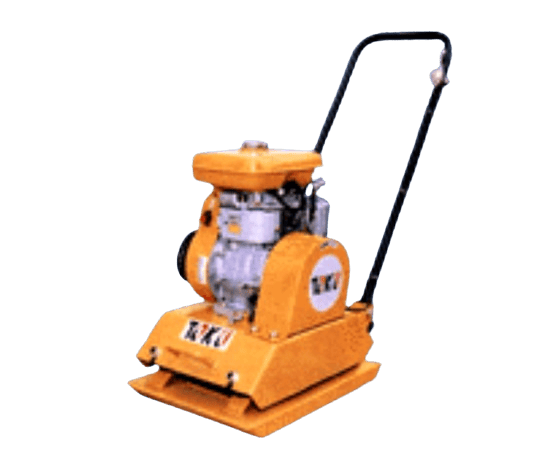

| TKL-80 | |
| Effective Base Area L x W (mm) | 450 x 430 |
| Exciter Speed (r.p.m) | 4900 |
| Travel Speed (m/min) | Up to 18 |
| Grade Ability (Deg) | Up to 16 |
| Centrifugal Force (kN) | 12 |
| Min. Compaction Depth (cm) | 20 |
| Engine | Robin EY20D or Honda GX160 or equivalent |
| Engine Type | Air-cooled Gasoline |
| Rated Output (hp/rpm) | 3.5/3600 |
| Starting System | Recoil |
| Machine Weight (kg) | 79 |

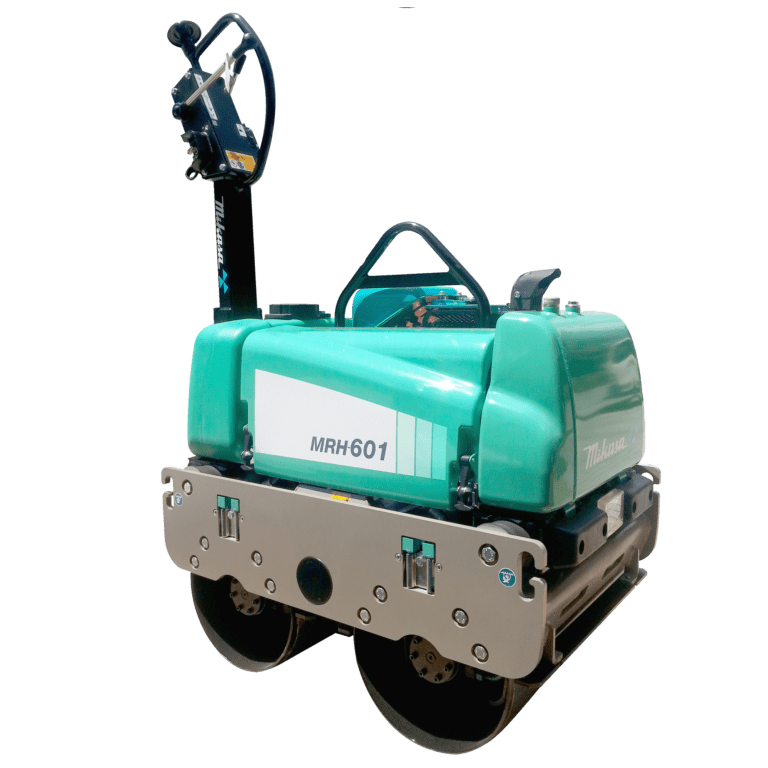

Mikasa MRH601 double drum road roller with diesel engine Kubota EA330.
Safety starting system: Engine start can be operated under neutral travelling position.
Center Cover: Easy maintenance.
Mikasa original strainer & water tank design: Prevention from clogging of sprinkling pipe.
Engine guard: Resist shock and protect the engine.
Dust & water proof: Increase of durability.
Head light as standard equipment.
Emergency stop switch.
Parking brake.
Drum stopper.
Front rubber.
| Engine Model | Kubota Diesel EA330 |
| Engine Power | Max. Output: 4.6kW (6.3PS) |
| Engine Starting System | Electric start |
| Drum Size (Ø x W) | 355mm x 650mm |
| Centrifugal Force | 10.8 kN / 1100 kgf |
| Vibrating Frequency | 55 Hz / 3300 v.p.m |
| Travelling Speed | 0 ~ 3 km/h |
| Limited Gradeability | 35 % |
| Water Tank | 30 Liters |
| Oil Tank | 22 Liters |
| Dimensions (L x W x H) | 2265mm x 692mm x 1195mm |
