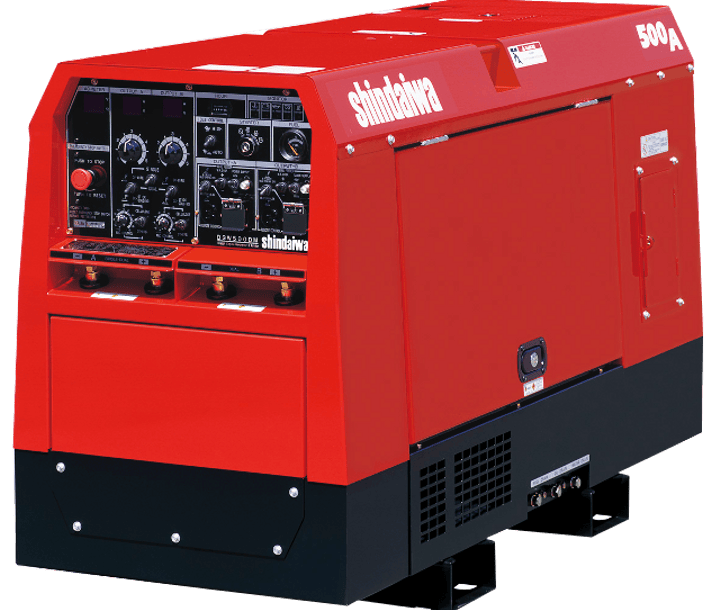

DGW500DM/GULF

• TEASER FOR PRODUCT DETAILS: DGW500DM/GULF
• UPLOAD IMAGE FOR PRODUCT:
• product-detail: DGW500DM/GULF
• :

  RealDual（R）

  Deliver two independent, high qulaity welding arcs

  Small in size, Tough to the core

  Japan-made alternator coated by multi-layer varnish. Driven by a reliable KUBOTA engine, manufactured in Japan

  Quiet

  No worries of noise hazard protection

  Multi Tasking

  Able to run a varety of auxially tools

  DGW500DM GULF WDC CV SINGLE

  Welding Generator Rated Speed (min-1)	3600
  Welding Generator current adj range (A)	60-500
  Welding Generator duty cycle (%)	60
  Welding Generator gouging rod size (mm)	3.2-9.5
  Welding Generator no load volatge (OCV) (V)	MAX85
  Welding Generator rated current (A)	480
  Welding Generator rated voltage (V)	39
  Welding Generator welding rod capacity (mm)	2.0-6.0
  Dry Weight (kg)	613
  engine displacement (l)	1.498
  Engine model	KUBOTA V1505
  engine rated output (kW/min-1)	29/3600
  Fuel tank capacity (l)	63.00
  Overall Dimension (mm)	(D)1680 x (Š)700 x (V)950
  Engine Type	Vertical, water-cooled, 4 cycle diesel

  DGW500DM GULF WDC CC DUAL

  Welding Generator Rated Speed (min-1)	3600
  Welding Generator current adj range (A)	30-280
  Welding Generator duty cycle (%)	80
  Welding Generator gouging rod size (mm)	3.2-5.0
  Welding Generator no load volatge (OCV) (V)	MAX85
  Welding Generator rated current (A)	230
  Welding Generator rated voltage (V)	29
  Welding Generator welding rod capacity (mm)	2.0-6.0
  Dry Weight (kg)	613
  engine displacement (l)	1.498
  Engine model	KUBOTA V1505
  engine rated output (kW/min-1)	29/3600
  Fuel tank capacity (l)	63.00
  Overall Dimension (mm)	(D)1680 x (Š)700 x (V)950
  Engine Type	Vertical, water-cooled, 4 cycle diesel

  DGW500DM GULF WDC CV SINGLE

  Welding Generator Rated Speed (min-1)	3600
  Welding Generator duty cycle (%)	60
  Welding Generator no load volatge (OCV) (V)	MAX85
  Welding Generator rated current (A)	480
  Welding Generator rated voltage (V)	39
  Welding Generator voltage adj range (V)	14-40
  Welding Generator wire size (mm)	0.6-2.4
  Dry Weight (kg)	613
  engine displacement (l)	1.498
  Engine model	KUBOTA V1505
  engine rated output (kW/min-1)	29/3600
  Fuel tank capacity (l)	63.00
  Overall Dimension (mm)	(D)1680 x (Š)700 x (V)950
  Engine Type	Vertical, water-cooled, 4 cycle diesel
